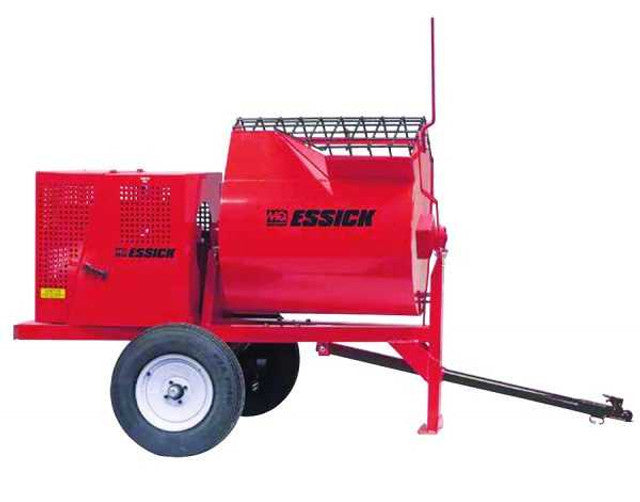

Essick 12 CUFT Mechanical Mortar Mixer-Gas Powered

Unit Specifications
Drive System Mech. Gearbox
Drum Capacity 12 cu. ft
339.8 L
3 1/2 – 4 bags
Dump Type Manual
Discharge Height 17 in 430 mm
Drum Type Steel
Drum Thickness 9 gauge
Engine Cover Thickness 12 gauge
Tire Size B78x13
Frame Type Rectangular
Paint Type Powder coat
Power Source Honda GX340UT Special
Notes:Heavy Duty Safety Chains included. All mixers availible with loop couper, 2″ ball coupler, or pin-type coupler.

Dimensions & Weights
Overall Length 105 in 2667 mm
Overall Width 56 in 1422 mm
Overall Height 60 in 1520 mm
Overall Height
w/Dump Handle 75 in 1910 mm
Operating Weight 1040 lb 471.7 kg

Engine Specifications
Engine Make/Model Honda GX390UT
Start Method Recoil
Engine Power 11.7 HP 8.72 kW
Engine RPM 3600
Fuel Type Gasoline
